Understanding Force Measurement Accuracy, Resolution, and Their Importance in Material Testing

Precision in force measurements is critical in material testing, where even minor inaccuracies can compromise results. Concepts like force measurement accuracy and resolution often determine the reliability of measurements. In this post, we’ll dive into these concepts, explain their meaning, and explore their relevance in material testing applications.

Force Measurement Accuracy

Load cell accuracy refers to how closely the load cell’s reading matches the true force applied. It’s typically expressed as a percentage of the reading or the load cell’s full-scale capacity. For example, an accuracy of ±0.5% of the reading means the measured value could deviate by 0.5% in either direction from the true value.

Modern load cells are designed to maintain their stated accuracy even at very low forces, extending their usability across a wide range.

For instance:

• A 10 kN (10,000 N) load cell with ±0.5% accuracy down to 1/100th of its capacity can accurately measure loads as low as 100 N. At 1/1000th of its capacity, it can accurately measure down to just 10 N.

This capability has several advantages:

• Reduced Equipment Needs: Fewer load cells are required for varying load ranges, saving costs on equipment and maintenance.
• Enhanced Testing Throughput: Operators spend less time switching load cells between tests.
• Higher Confidence in Low-Load Testing: Ensures reliable data even for small loads, crucial for delicate specimens or precise tests.

Measurement Resolution

Load cell resolution defines the smallest change in applied force that a load cell can detect and measure reliably. It represents the sensitivity of the load cell’s output signal to variations in load and is typically expressed in force units per unit of signal output (e.g., Newtons per volt or grams per millivolt).

Several factors influence resolution, including the sensitivity of the sensing elements (such as strain gauges), the quality of signal conditioning electronics, and the digital sampling rate of the data acquisition system. Higher-resolution load cells can detect finer changes in applied force, enhancing measurement granularity and overall precision. This is particularly critical in applications requiring high accuracy, such as material testing, where even minor force variations must be captured for reliable analysis.

The resolution is calculated using the formula:

Resolution = Full-Scale Capacity/2^{Bit Depth}

For example, a 32-bit data acquisition system connected to a 10 kN (10,000 N) load cell has a resolution of:

Resolution = 10,000 N/2³¹ = 10,000/2,147,483,648 ≈ 0.0000047 N

This means the system can detect force changes as small as 4.7 μN (microNewtons). A higher bit depth significantly improves sensitivity, allowing the detection of extremely fine force variations, which is crucial for precision material testing and applications requiring ultra-high accuracy.

Of course, these are theoretical limits of the possible resolution with the given bitness of the data acquisition system, and overall accuracy and resolution depend on several practical factors. Signal noise, temperature variations, and the quality of the load cell and signal conditioning electronics all influence the actual measurable resolution. Additionally, while a high-bit-depth DAQ system can theoretically detect extremely small changes in force, the effectiveness of that resolution is constrained by the precision of the analog-to-digital conversion, the stability of the sensor output, and potential electrical interference. In real-world applications, achieving the full theoretical resolution requires careful system calibration, shielding from environmental disturbances, and using high-quality components that minimize drift and hysteresis effects.

Accuracy vs. Resolution: Why Both Matter

Accuracy and resolution are often confused, but they serve different purposes:

Accuracy ensures the measurement is close to the true value.
Resolution ensures the system can detect small changes in force.

For instance, an accurate load cell with poor resolution might miss small load fluctuations, while a high-resolution system with poor accuracy could consistently measure the wrong force.

Here are some tips for reliable force measurements:

Select the Right Load Cell Capacity: Choose a load cell where the test forces fall between 10% and 90% of its capacity.
Calibrate Regularly: Follow standards like ASTM E4 to maintain load cell accuracy.
Use a High-Resolution DAQ System: Opt for systems with at least 24-bit resolution for precise measurements.
Account for Environmental Factors: Use temperature-compensated load cells in variable environments.

The Importance of Force Measurements in Material Testing Applications

Force measurements are the backbone of material testing, providing invaluable insights into how materials respond under various conditions. In tensile testing, these measurements determine the force required to stretch materials until they break, revealing their strength and elasticity. Compression testing relies on precise force data to assess how materials withstand crushing forces, essential for applications in construction and manufacturing.

Fatigue testing, perhaps the most demanding of all, examines how materials endure repetitive loading over millions of cycles. Here, the smallest variations in applied force can signal the onset of failure. For instance, when testing aluminum alloys, a high-accuracy load cell paired with a high-resolution data acquisition system becomes indispensable. This combination captures even the most minute changes in force, offering a clearer picture of the material’s fatigue life and ensuring more reliable predictions of its behavior.

Through these diverse testing methods, force measurements enable engineers and scientists to develop materials that are not only stronger and more resilient but also safer and more cost-effective. Whether stretching, compressing, or cycling materials to their limits, accurate force measurements lay the foundation for innovation and reliability in countless industries.

Conclusion

Accurate and precise force measurements are foundational for reliable material testing. Understanding concepts like load cell accuracy and measurement resolution enables better equipment choices and test designs, ultimately improving data quality and reducing errors.

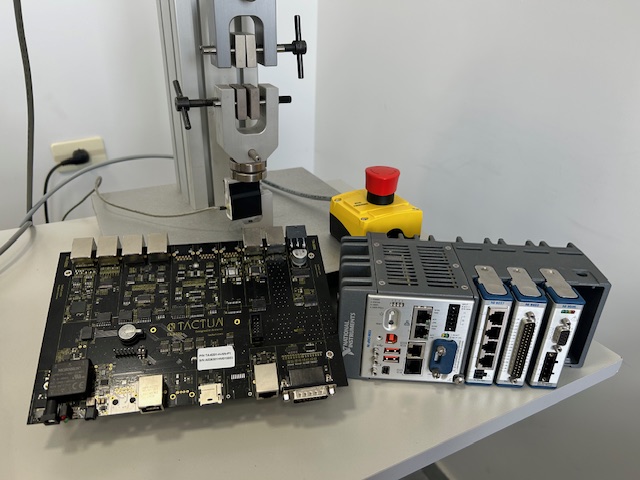

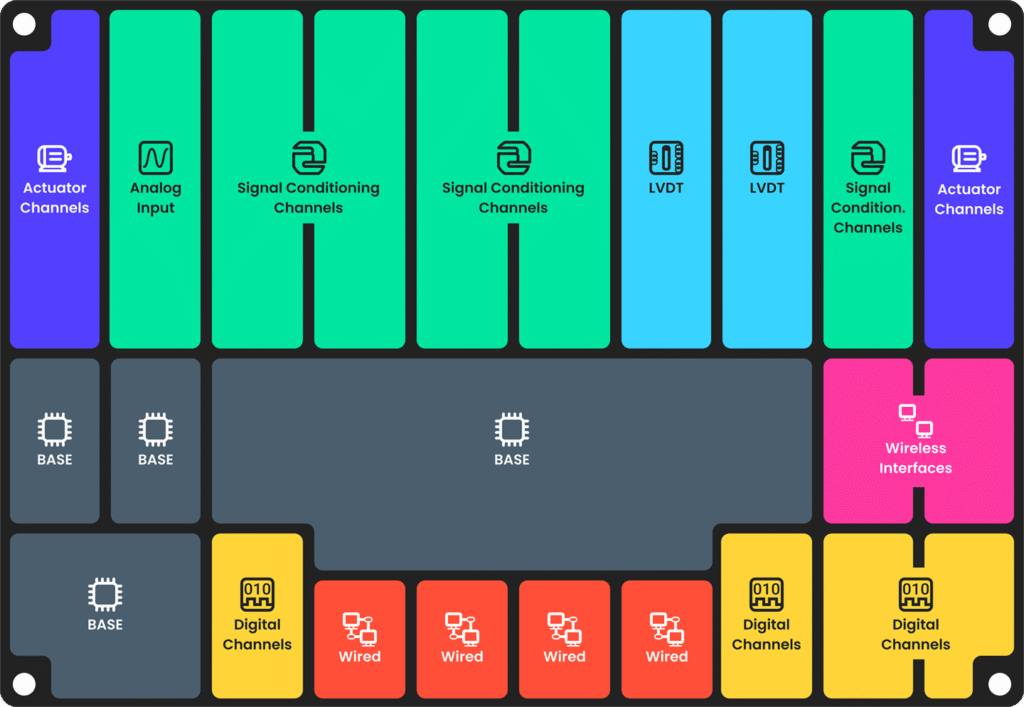

By integrating advanced platforms like TACTUN, which combine low noise signal conditioning and high-resolution data acquisition, engineers can streamline workflows, enhance test reliability, and gain deeper insights into material performance.
